Item Parameters

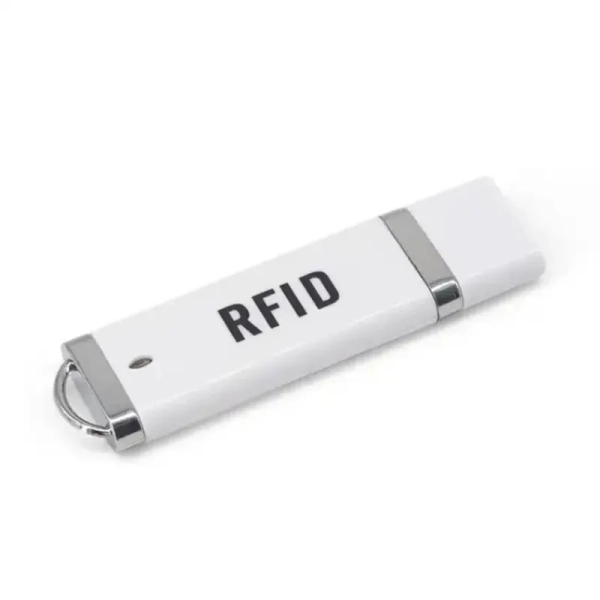

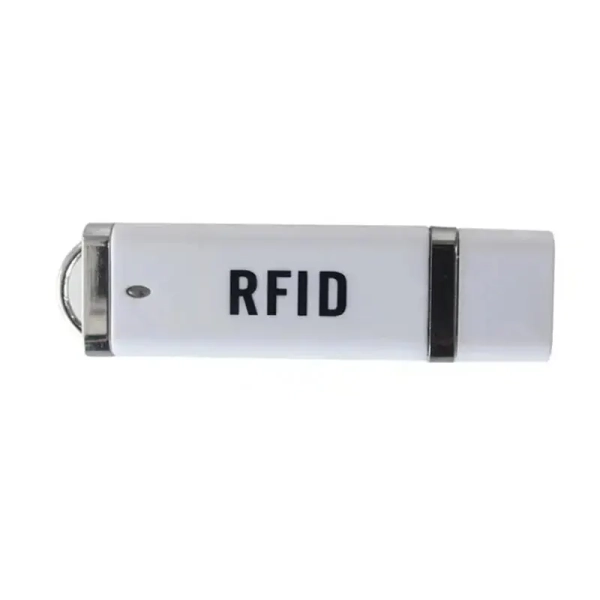

Model: R60D/R60C

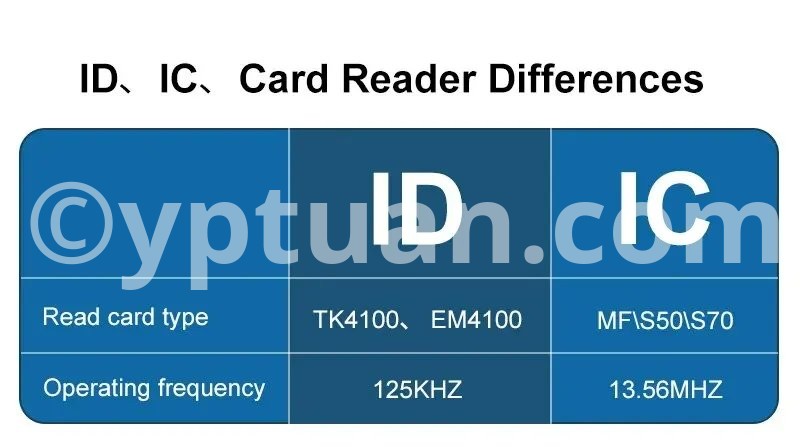

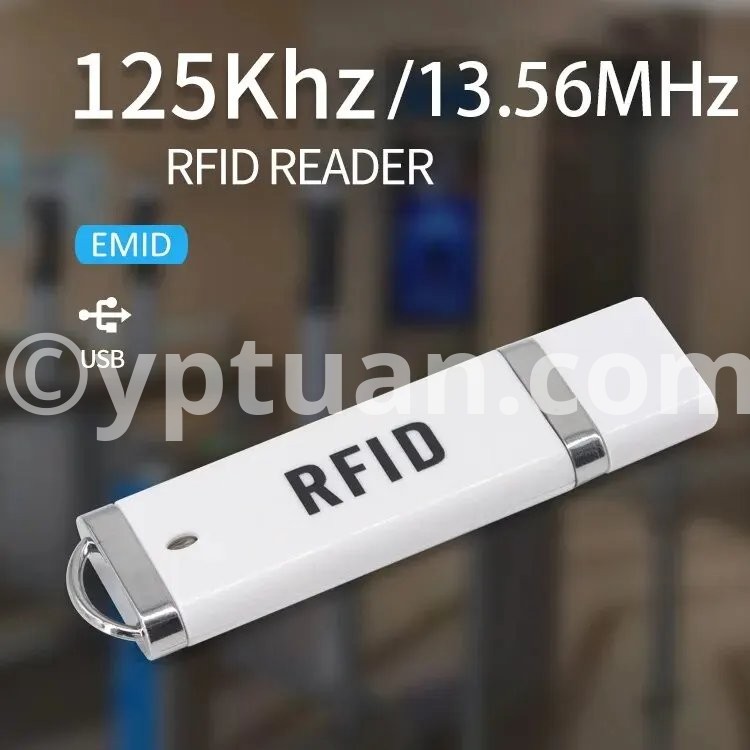

Frequency: R60D-125Khz, R60C-13.56MHz

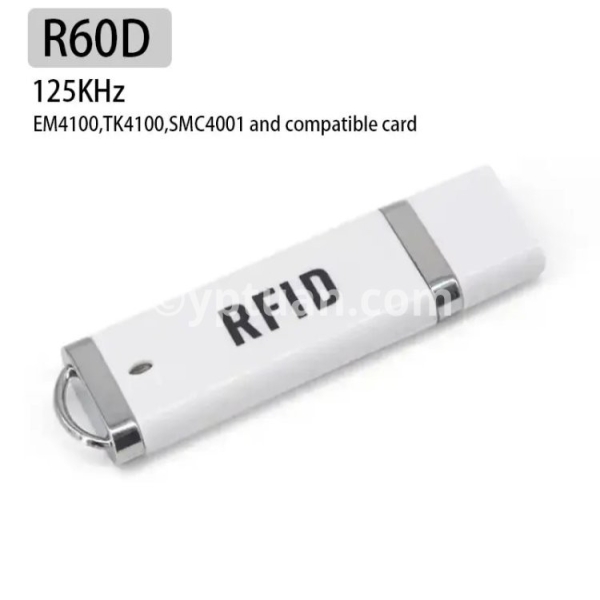

Support Cards: R60D-Em4100,TK4100,SMC4001 and compatible card;

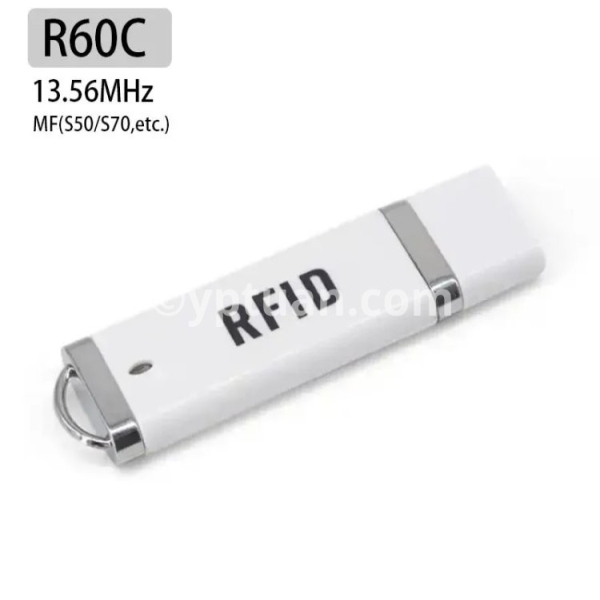

R60C-MF(S50/S70,etc.)
Output format: 10 digit dec(Defoult output format) (Allow user to customize the output format)

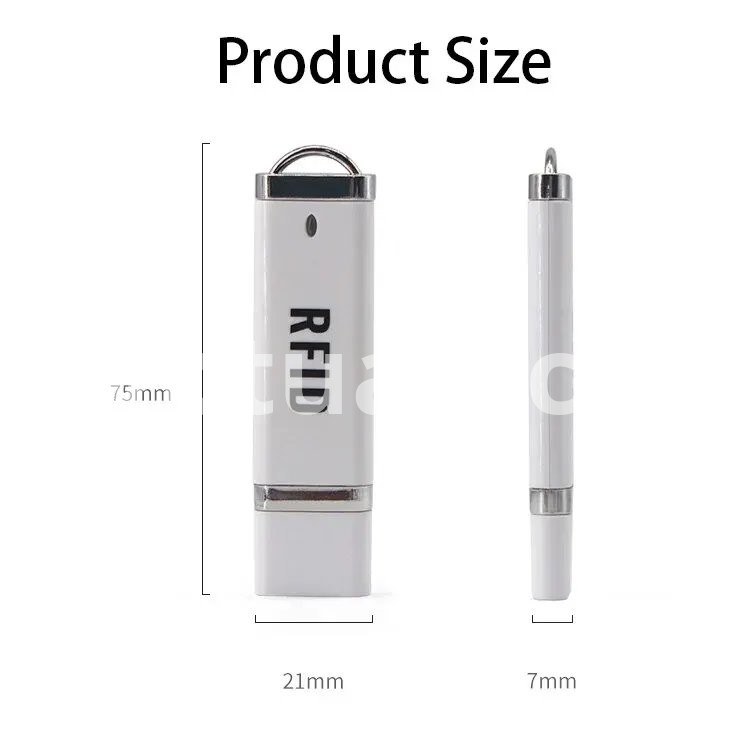

Size: 75mm×21mm×7mm (Without package)
Colour: White

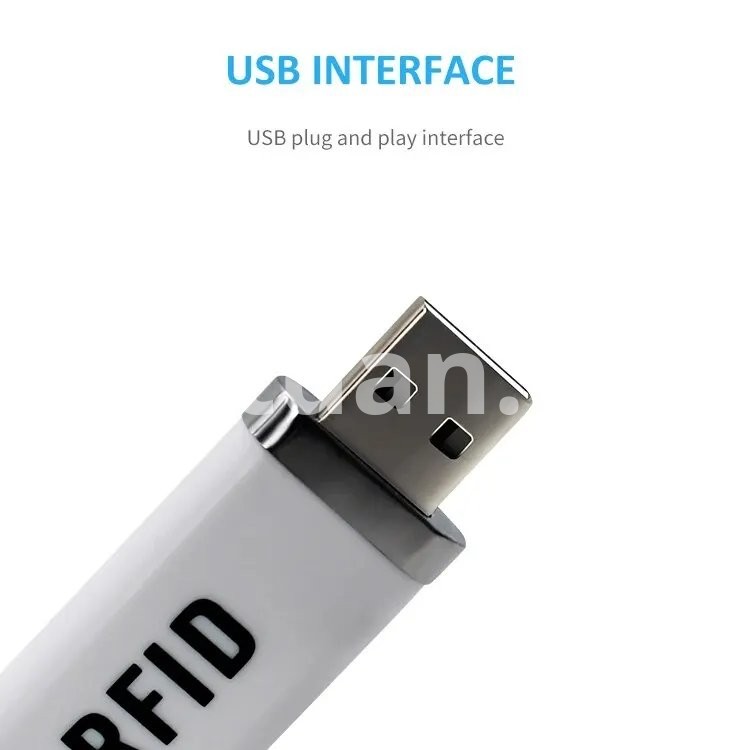

Interface: USB
Power Supply: DC 5V

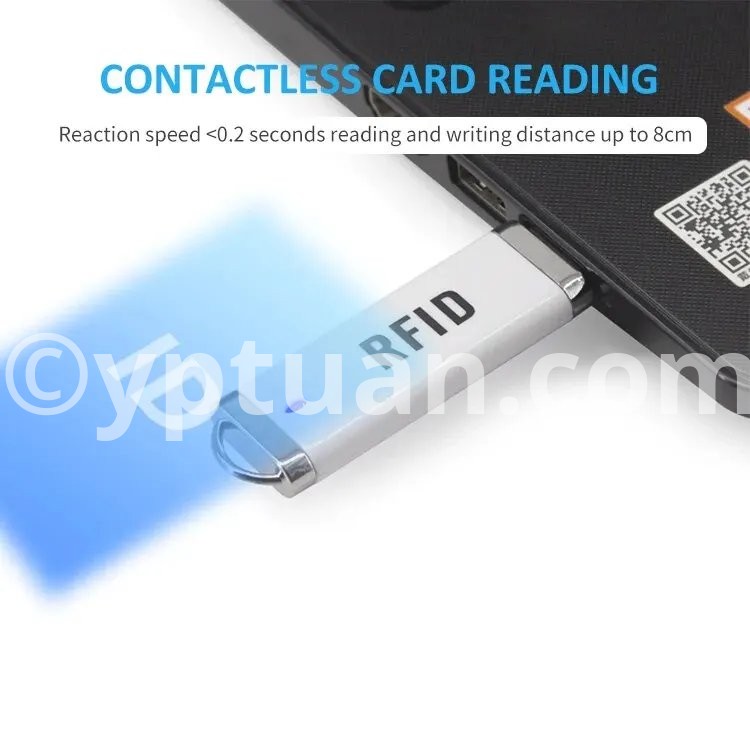

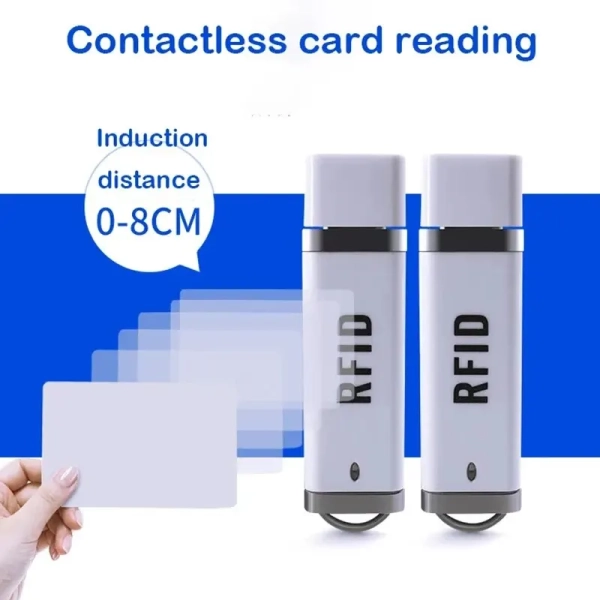

Operating Distance: 0mm-100mm(related to the card or the environment)
Service Temperature: -10℃ ~ +70℃
Store Temperature: -20℃ ~ +80℃
Working humidity: <90%
Read time: <200ms
Read interval: ＜0.5S
Weight: About 10G (Without Package)
Material of reader: ABS

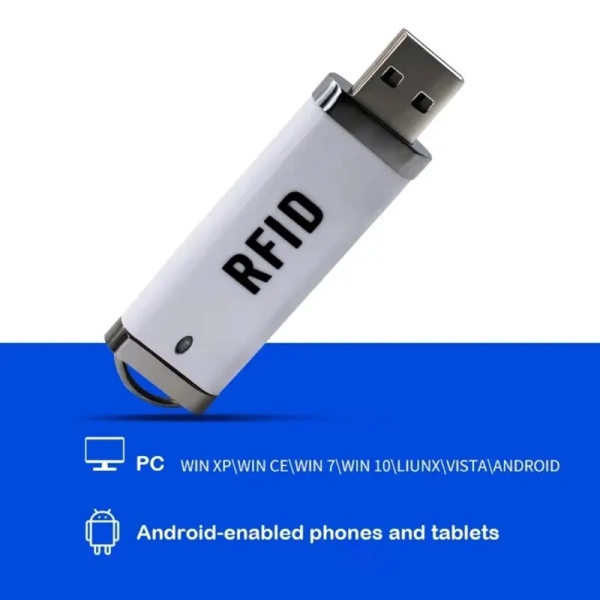

Operating System: Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android

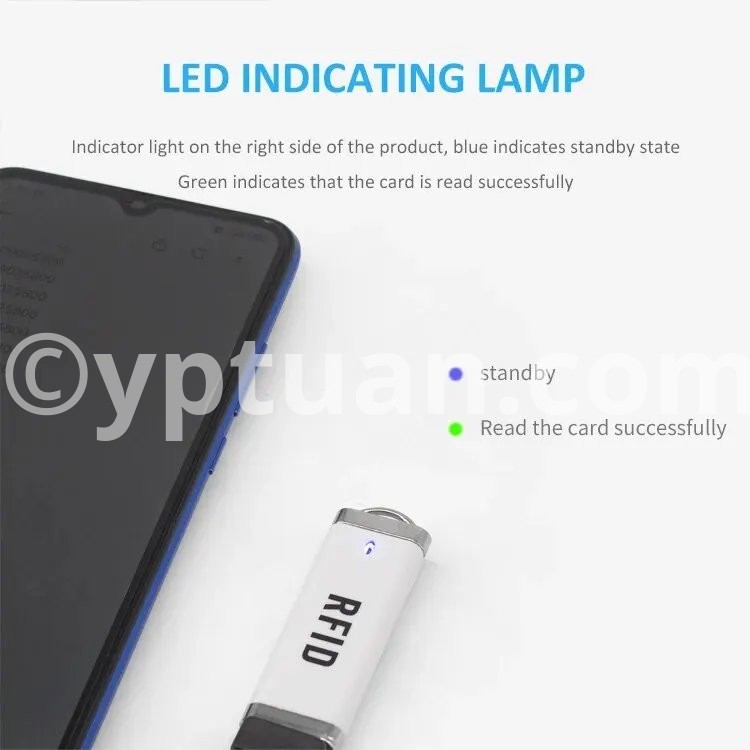

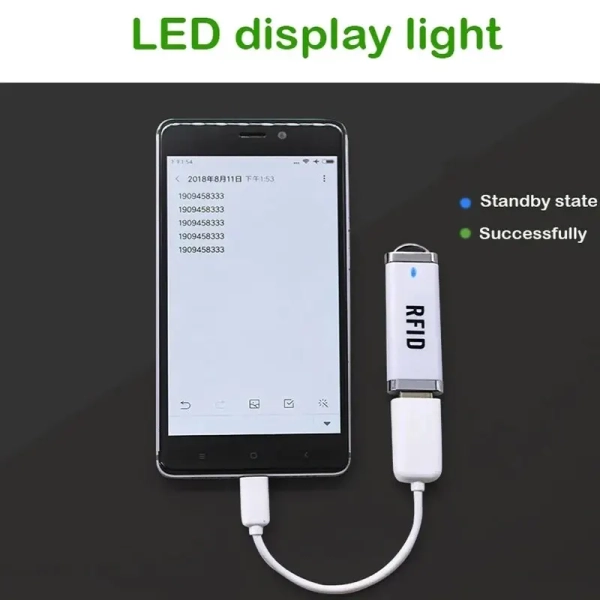

Indicators: Double Color LED (Blue & Green) and Buzzer
(“Blue” means standby, “Green” means reader success)

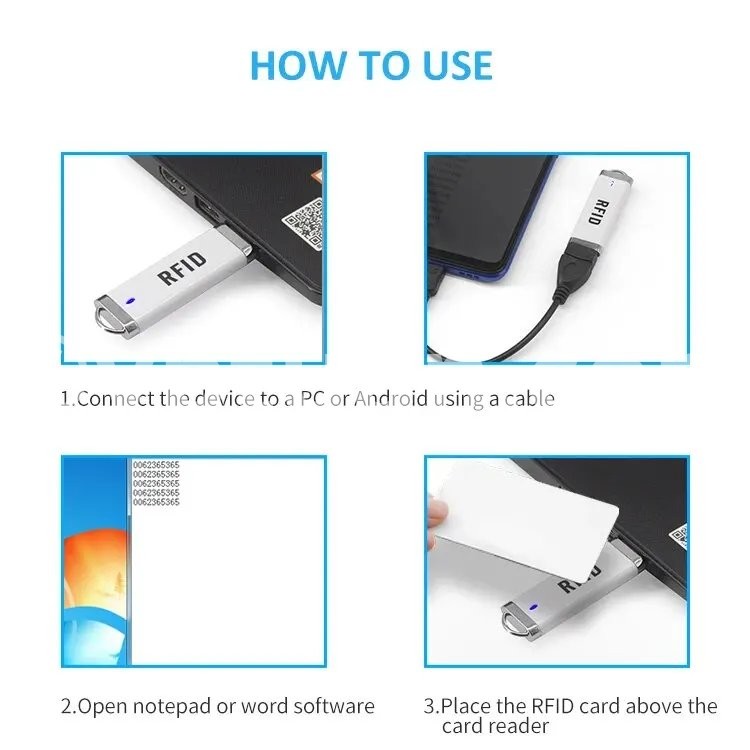

Instruction for useing:

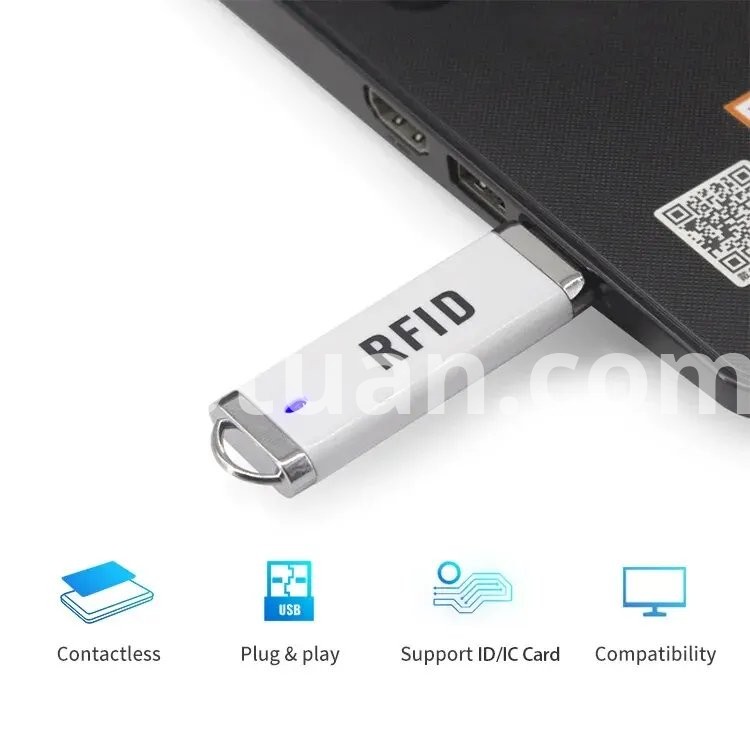

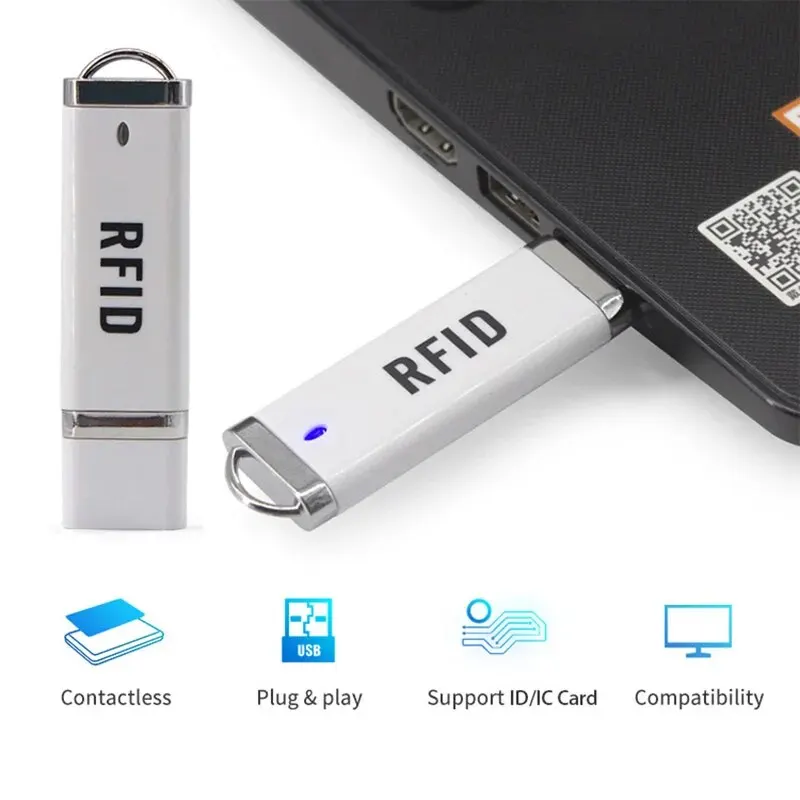

1. Connet with computer through USB interface directly
2. Open Notepad or a word document
3. The mouse in Notepad or WORD document clicking
4. Put card on the top of reader.
5. Notepad or word documents will output of the ID card number
