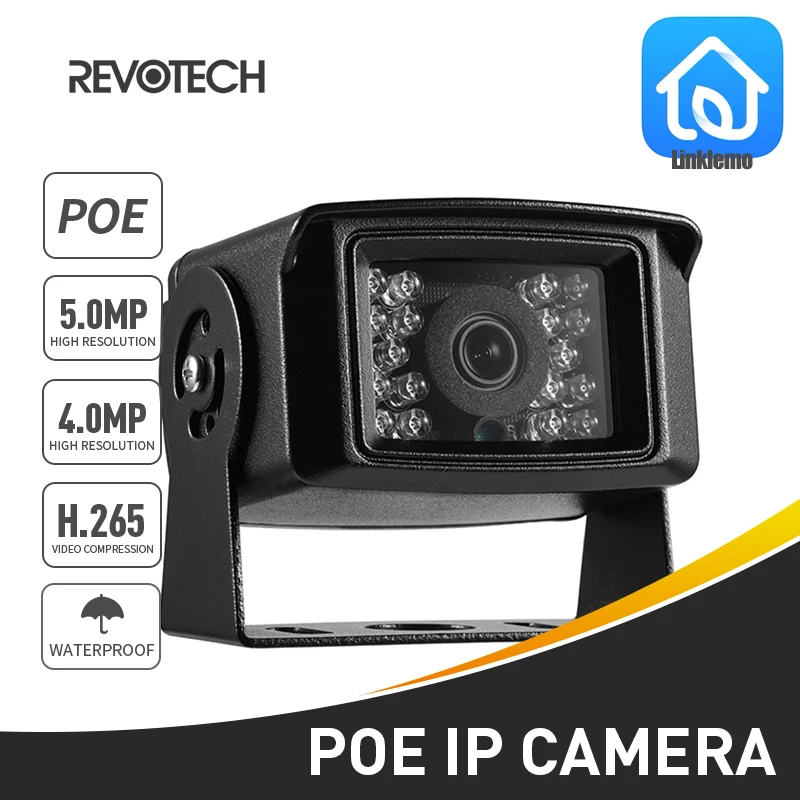

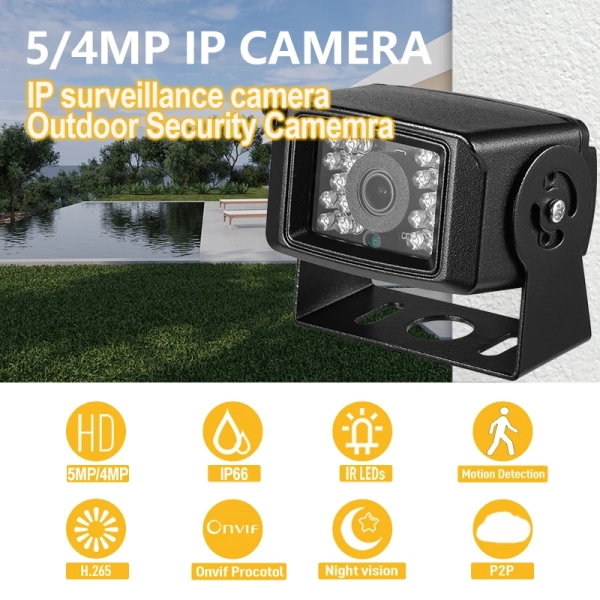

5MP 4MP POE IP Camera UltraHD Mini Security Camera Outdoor Waterproof 10M IR Night Vision Motion Detection Smart Phone/PC App

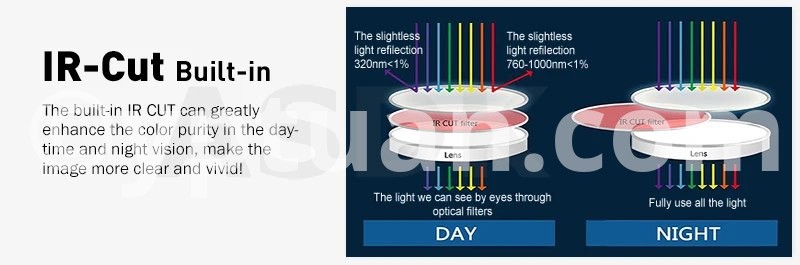

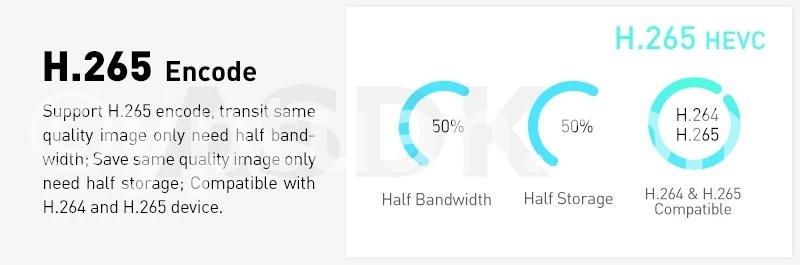

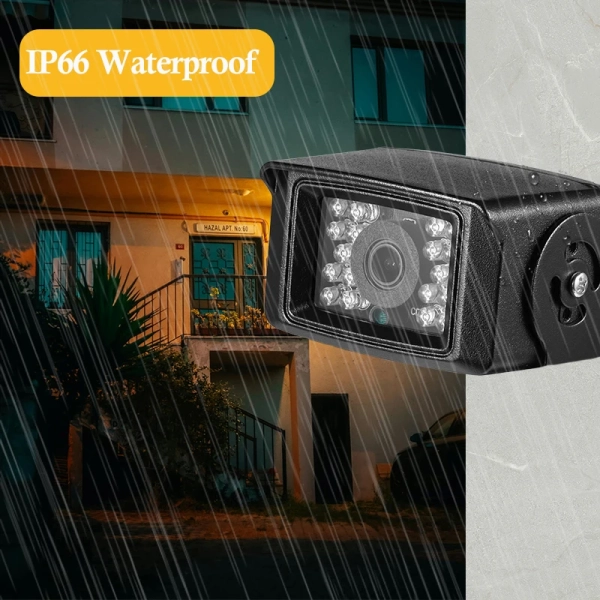

- High Resolution 4.0/5.0 Megapixel 1/3'' CMOS Sensor - 4MP 2560*1440P resolution / 5MP 2880*1616P resolution - Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage; - Also support H.264 encode, so it can be compatible with both H.264 and H.265 device. - Support POE, reduce the trouble of cable arrangement. - Have auxiliary power supply, can use like a Non-POE IP camera. - Support iPhone, Android smart phone - Weatherproof IP66 - P2P Cloud Function - Support Motion detection, Email Alarm function. - Support web interface of IE6.0 and above browser. - Day & Night vision - Net weight: 0.3KG - Metal Material Shell - Simple Operation and Easy to Use

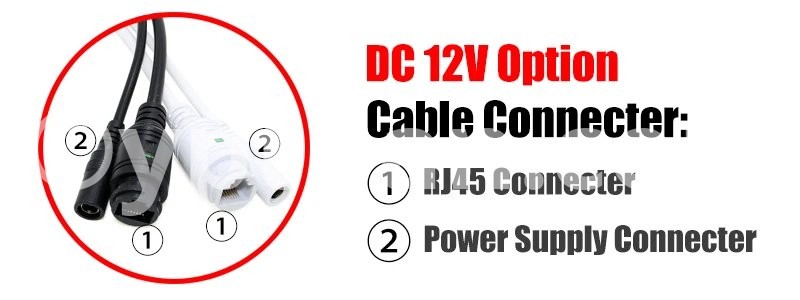

NOTE: 1. This camera default 4/5MP & H.265, if your NVR do not support 4/5MP or H.265, you can change our camera into 1080P (2MP) and H.264. 2."POE 48V" Option mean the camera support POE, can power from POE, need to connect with a802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera). 3."DC 12V" Option mean the camera is regular version, do not support POE and it can only with with a 12V regular power. 4. This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Linklemo” app.

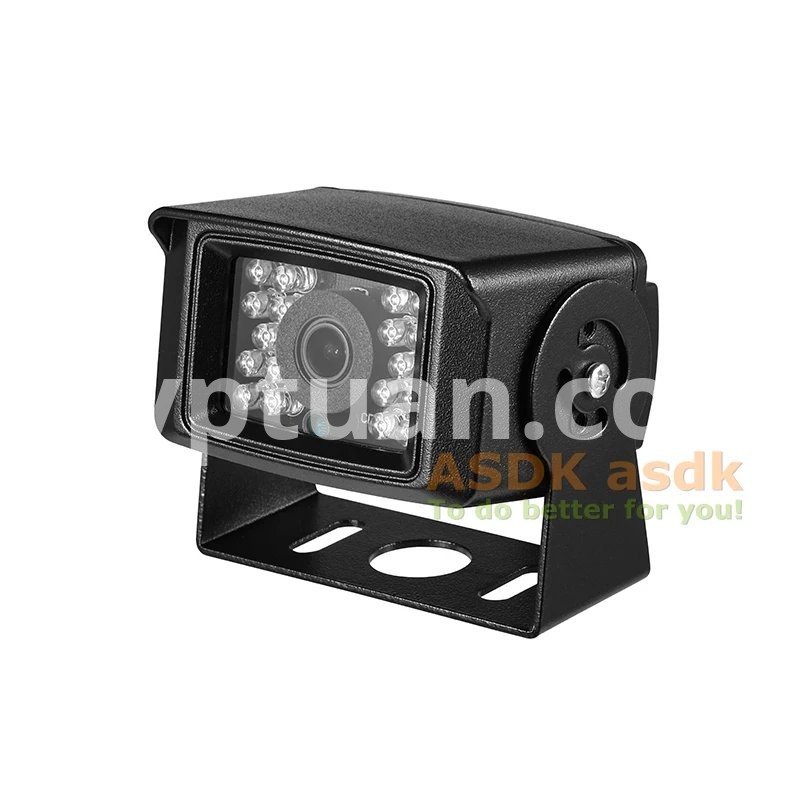

Camera
Model: I704-HS 4MP Resolution:2560 x 1440P 4.0 Mega Pixels camera 4MP Sensor: FH8852V201 + GC4063 4MP Frame rate: 25fps 5MP Resolution:2880 x 1616P 5.0 Mega Pixels camera 5MP Sensor: FH8852V200 + GC5053 5MP Frame rate: 25fps Min illumination: 0.01Lux @(F1.2,AGC ON) Shutter: 1/25 seconds -1/100,000 seconds Lens:3.6mm Lens interface type: M12 Day and night conversion: Auto Compression Format: H.264 / H.265 Compression rate output: 128 Kbps~8Mbps Storage: NVR or Computer.This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Linklemo” app. IP address: Dynamic (Default) / Static Smart alarm: Motion detection, Email alarm Support protocol: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP Input protocol: The standard ONVIF Onvif Port: 80 General function: A key recovery, dual stream, password protection, video hiding Ethernet: 10M / 100M mbps Ethernet (RJ-45)
General

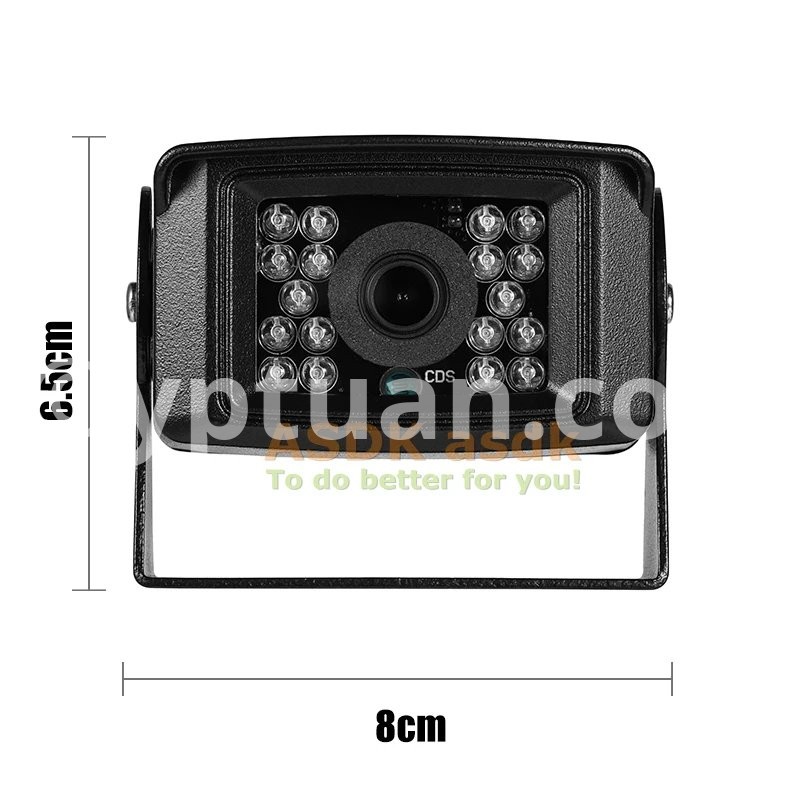

Operating Temperature: -25°C~60°C Operating Humidity: 10%~90% Power Supply: POE 48V option support POE 48V(802.3af) & DC12V/2A DC 12V option support DC12V/2A Power Dissipation: 15W MAX Waterproof: Yes Infrared lamp: 18PCS LED Night Vison Distance: 10-15m Dimension(mm): 8 x 6.5 x 6.7cm (L*W*H) Weight: 0.30kg

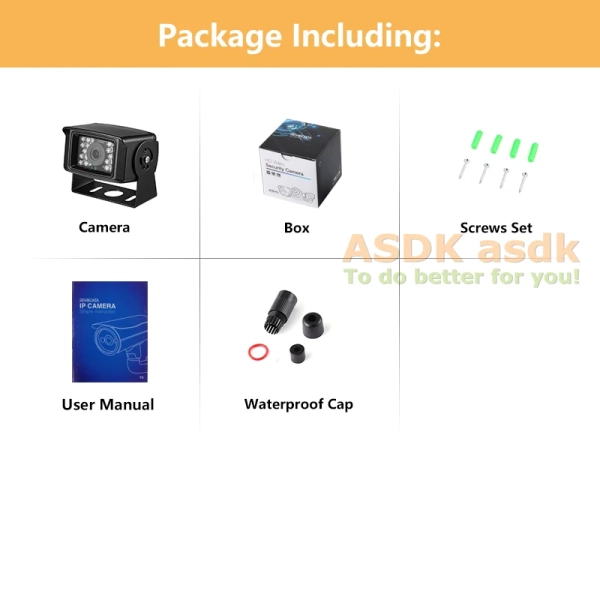

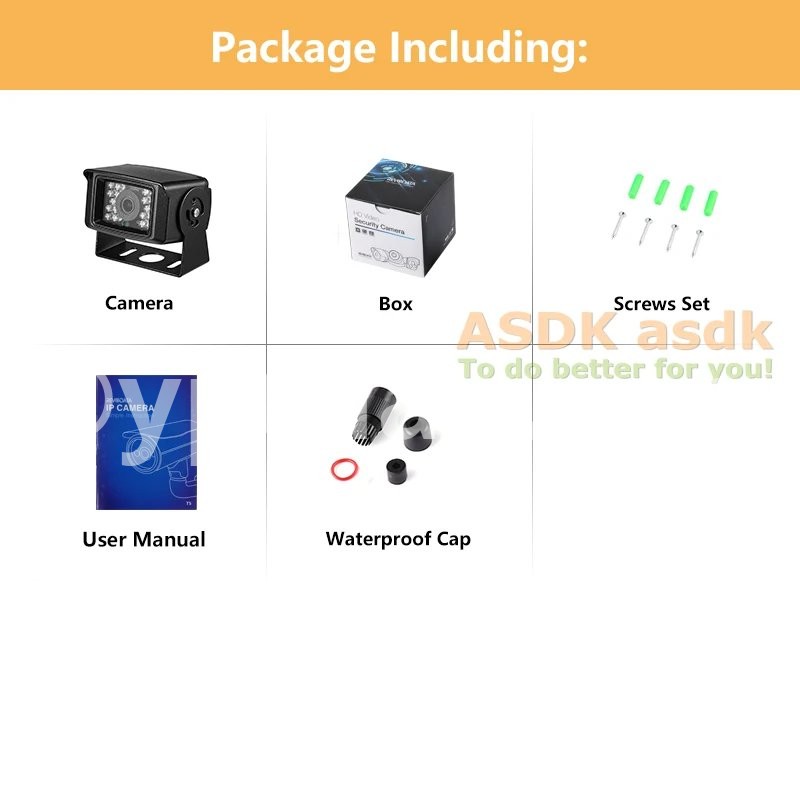

Package Content
1 x Camera 1 x User Manual 1 x Screws Set 1 x Waterproof Cap
Power Supply Note:

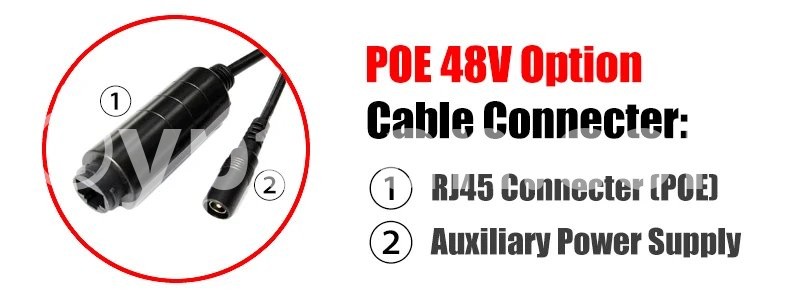

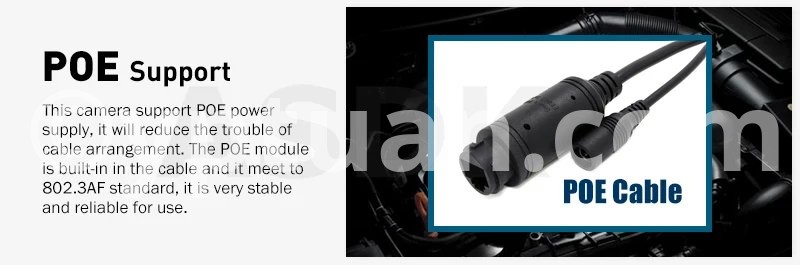

1.POE 48V version can power from POE, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.
2.Both POE 48V version and DC 12V version have not include power adapter, if you need one, please click the picture to buy.
5MP Pictures:

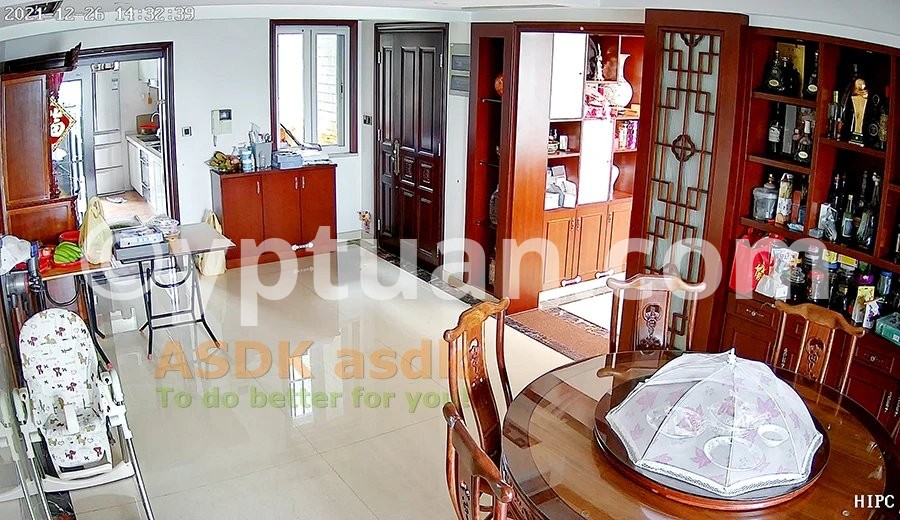

Daytime + Indoor
Night with light + Indoor
4MP Pictures:

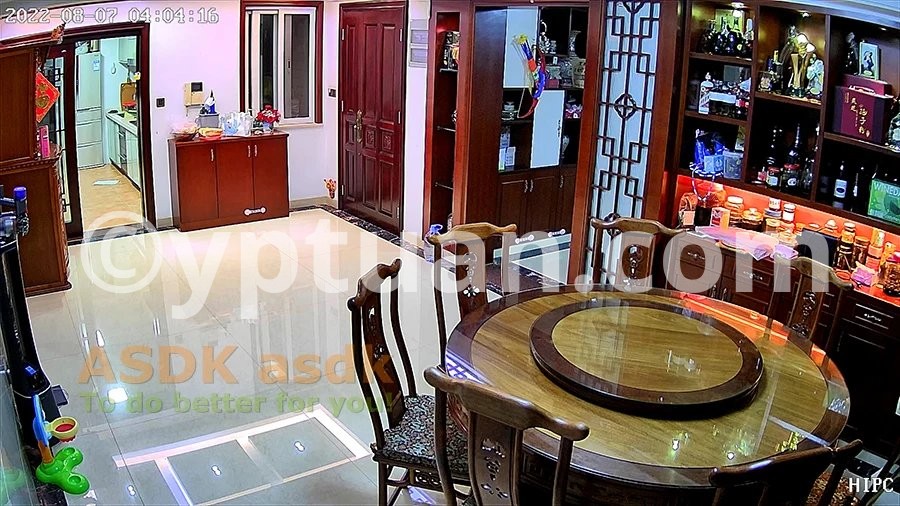

Daytime + Indoor
Night with light + Indoor

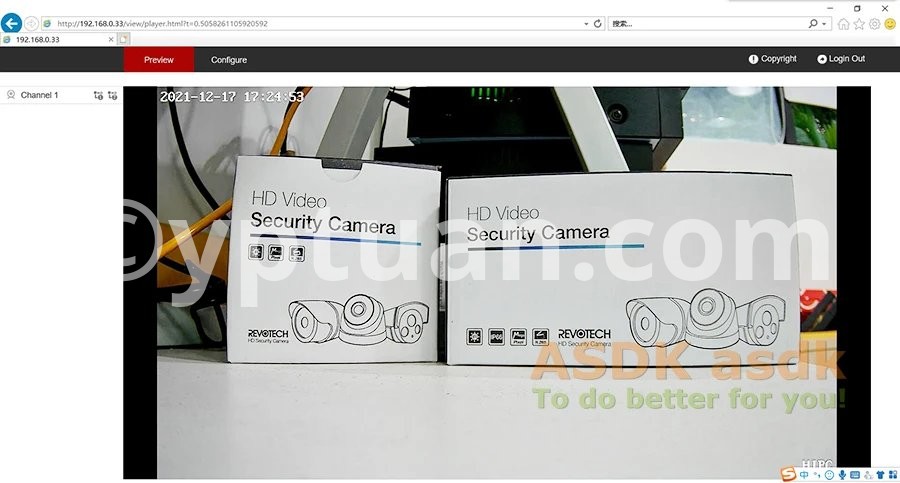

Browser View

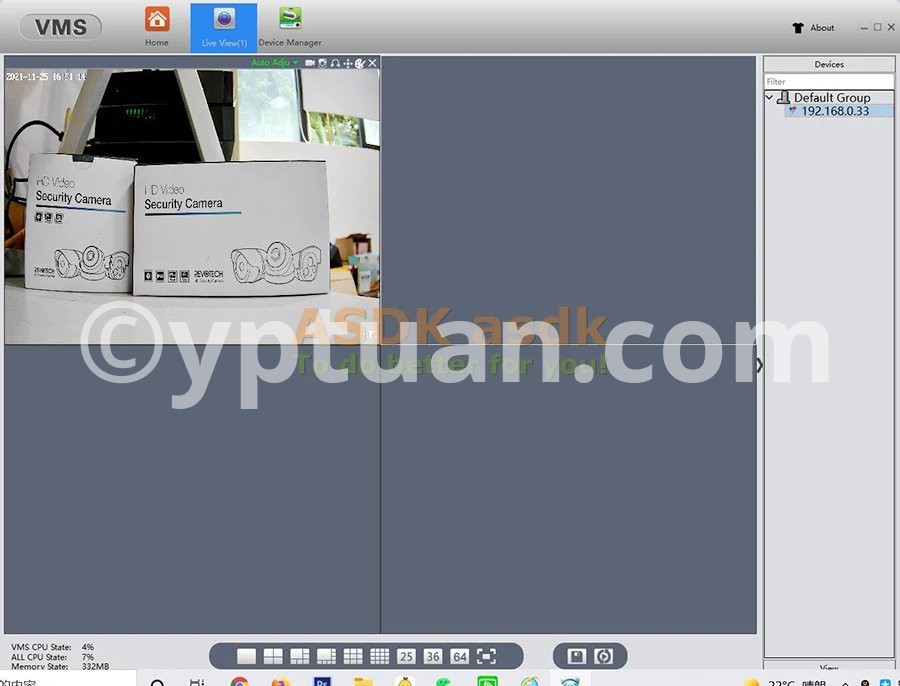

Software View

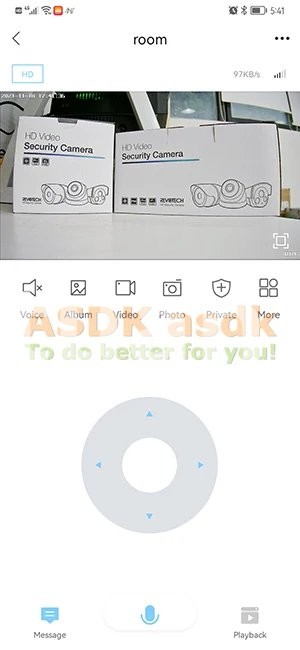

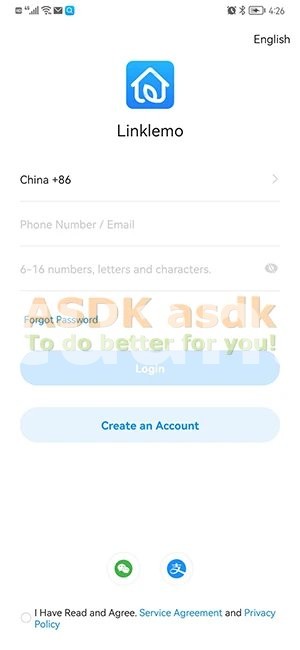

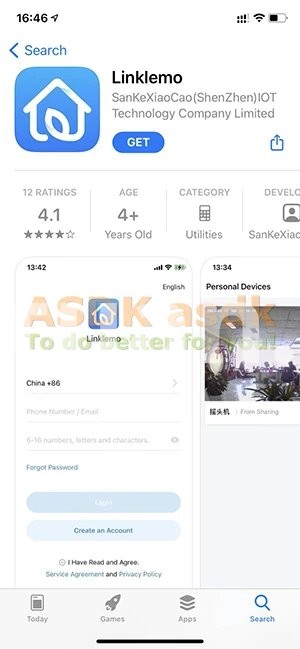

App Views
Important Notice: This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Linklemo” app.
